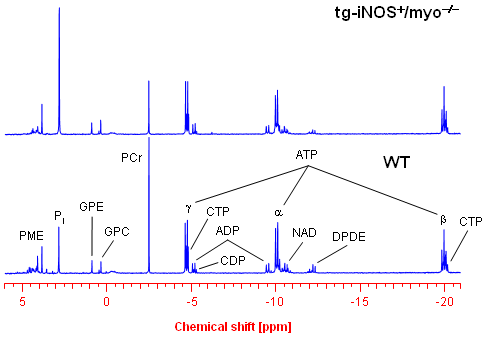

The high resolution 31P NMR spectra of heart extracts (see also tissue extracts) from WT (bottom) and TGiNOS/myo-/- (top) display a quite similar pattern as the spectra obtained in vivo – also in ex vivo spectra of transgenic hearts the substantial reduction of the PCr level is detectable.

Assignments: ADP, adenosine diphosphate; ATP, adenosine triphosphate; CDP, cytidine diphosphate; CTP, cytidine triphosphat; DPDE, diphosphodiester; GPC, glycerophosphocholine; GPE, glycerophosphoethanolamine; NAD, nicotinamide adenine dinucleotide; PCr, phosphocreatine; Pi, inorganic phosphate; PME, phosphomonoester.
